200BBL cement batch mixer
200BBL cement batch mixer
200BBL cement batch mixer
200BBL cement batch mixer200BBL cement batch mixer

Product description

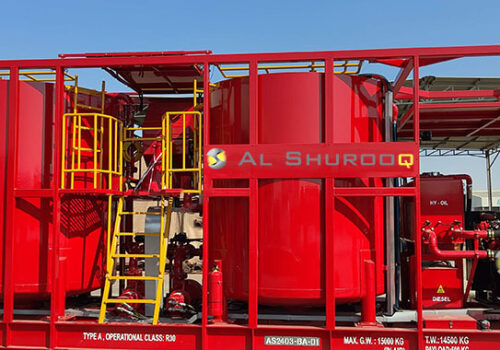

This trailer mounted cementing batch mixer unit delivers homogeneous slurry mixtures

This unit is powered with a Caterpillar C9 electronically controlled diesel engine with 300 Bhp. The unit power pack contains the engine, Funk gear pump driving the two Parker Denison double hydraulic pumps, hydraulic tank, diesel tank, air tank, and radiators.

This unit contains two hydraulically driven centrifugal pumps as well as one hydraulically driven agitator per tank for mechanical mixing in addition to all the necessary piping for jet mixing as well as independently recirculating the mixtures. It includes piping for cement feeding the tanks directly into the jet mixing system for better mixing from a convenient location the bottom of the unit, in addition to an auxiliary hopper.

Each cylindrical tank holds 100BBL for a total of 200BBL mixing capacity. The Agitators are of a five paddle design and are each driven by a high torque hydraulic motor.

The centrifugal pumps are Gardner Denver (USA) 6 x 5 and or optionally NOV Mission Magnum, or Double life c-pumps.

There is a operator platform at an elevated position between the two mixing tanks. The platform has a retractable roof to protect the operator from the sun. The control panel provides controls for the engine, agitators speed, and centrifugal pumps speed. Additionally the piping layout is engraved on the stainless steel plate of the control panel with pneumatic controls for the butterfly valve actuators.

Project Details

Skid mounted Cement batch mixer

  • Trailer: 2 axeles, 315R 22.5 Rims
  • LxWxH 12.0m x 3.0m x 4.75m
  • Deck engine: Caterpillar C9 300hp
  • PTO Pump drive: John Deere Funk drive
  • Parker hydraulic pumps
  • Gates Hydraulic hoses
  • 200 BBL consisting of two 100 BBL agitator mixing tanks, with jet mixing
  • Centrifugal pumps: 2 x Gardner Denver 5 x 6
  • Platform for operator with collapsible roof.
