Product description
This trailer mounted cementing batch mixer unit delivers homogeneous slurry mixtures
This unit is powered with a Cummins QSB 6.7 electronically controlled diesel engine with 260 Bhp. The unit power pack contains the engine, Funk gear pump driving the two Veljan double hydraulic pumps, hydraulic tank, diesel tank, air tank, and radiators.
This unit contains two hydraulically driven centrifugal pumps as well as one hydraulically driven agitator per tank for mechanical mixing in addition to all the necessary piping for jet mixing as well as independently recirculating the mixtures. It includes piping for cement feeding the tanks directly into the jet mixing system for better mixing from a convenient location the bottom of the unit, in addition to an auxiliary hopper.

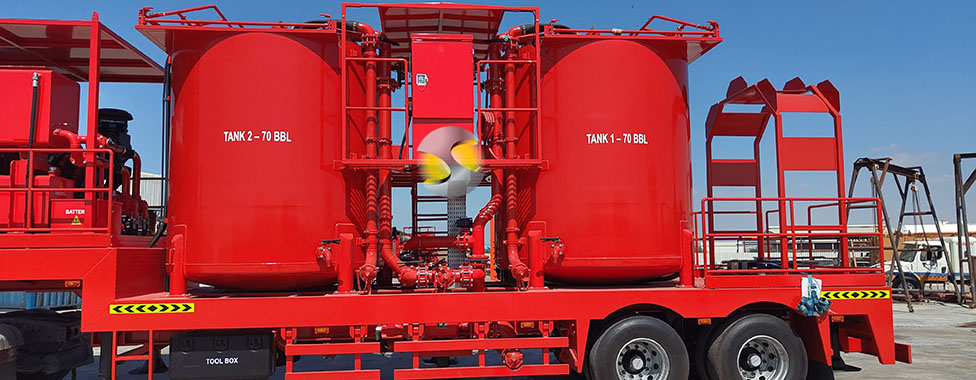

Each cylindrical tank holds 70BBL for a total of 140BBL mixing capacity. The Agitators are of a five paddle design and are each driven by a high torque hydraulic motor.
The centrifugal pumps are MCM 6 x 5 C-pumps.
There is a operator platform at an elevated position between the two mixing tanks. The platform has a retractable roof to protect the operator from the sun. The control panel provides controls for the engine, agitators speed, and centrifugal pumps speed. Additionally the piping layout is engraved on the stainless steel plate of the control panel with pneumatic controls for the butterfly valve actuators.
Project Details
Skid mounted Cement batch mixer
- Trailer: 2 axeles, 315R 22.5 Rims
- LxWxH 12.0m x 2.6m x 4.75m
- Deck engine: Cummins QSB6.7 260bhp
- PTO Pump drive: John Deere Funk drive
- Veljan hydraulic pumps
- Gates Hydraulic hoses
- 140 BBL consisting of two 50 BBL agitator mixing tanks, with jet mixing
- Centrifugal pumps: 2 x MCM 5 x 6
- Platform for operator with collapsible roof.
